Idiots look at Data, Part VI: Mid Graph

In Part V, we tried to grade IS regions. In Part VI, we look at the mid-graph regions of interest. Again, the idea is to count things that look like they might be possible problems, namely:

• shoulders on a peak of interest
• leading or trailing edge on a peak of interest.
• connection to neighbor above apparent baseline.
• neighbor within one peak width


This is not intended to be a definitive count, just a sense of what might be going on and in need of a second look.

As before, click on an image for bigger. For the most part, these are scaled 2x as wide as tall.

[MORE]

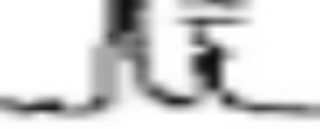

ucla: Shoulders 2, edges 1, connect 0, neighbors 0.



ex92: shoulders 1, edges 1, connect 2, neighbors 1




ex88: shoulders 2, edges 0, connect 2, neighbors 3





ex90: shoulders 1, edges 0, connect 2, neighbors 2




ex86: shoulders 2, edges 0, connect 2, neighbors 2

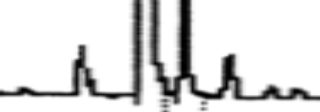

usada173: shoulders 2, edges 1, connect 2, neighbors 2

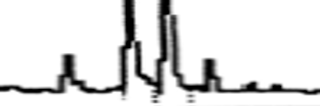

usada349: shoulders 2, edges 1, connect 2, neighbors 2



ex87: shoulders 1, edges 1, connect 2, neighbors 2



ex84: shoulders 1, edges 1, connect 2, neighbors 2

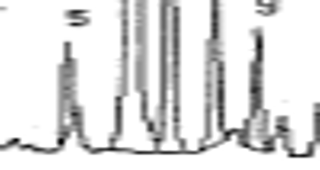

ex93: shoulders 1, edges 1, connect 2, neighbors 2



ex85: shoulders 1, edges 2, connect 2, neighbors 2



ex89: shoulders 1, edges 1, connect 2, neighbors 2



s3a: complete co-elution of 5aB and 5bA; shoulders 1, edges 1, connect 2, neighbors 4.



s3b: shoulders 0, edges 1, connect 2, neighbors 1



Assesment

Test	shoulders	leading or trailing edge	connect above baseline	neighbors within one peak	total
UCLA	2	1	0	0	3
Ex 92 3-Jul	1	1	2	1	5
Ex 88 13-Jul	2	0	2	3	7
Ex 90 14-Jul	1	0	2	2	5
Ex 86	2	0	2	2	6
USADA 173 20-Jul	2	1	2	2	7
USADA 349 20-Jul	2	1	2	2	7
Ex 87 22-Jul	1	1	2	2	6
Ex 84 23-Jul	1	1	2	2	6
Ex 93 control	1	1	2	2	6
Ex 85 control	1	2	2	2	7
Ex 89 control	1	1	2	2	6
Shackleton top	1	1	2	4	8
Shackleton bottom	0	1	2	1	4
